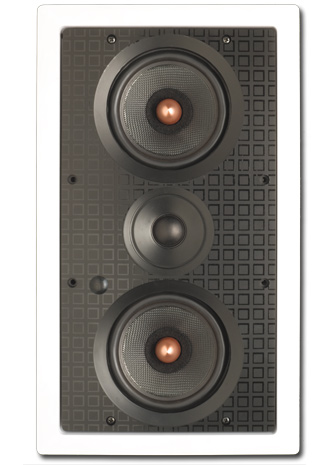

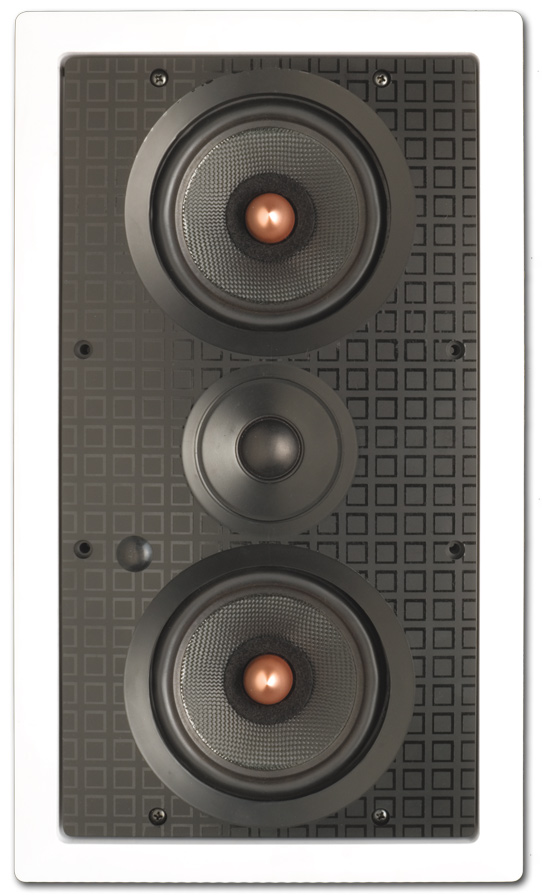

A-LCRS
Dual 5-1/4" 2-way rectangular MTM
Center / All Channel - LCRS
5.1, 6.1, & 7.1 Home Theater Systems
Specially designed for use in left, center, right & surround loudspeaker
positions of home theater systems.

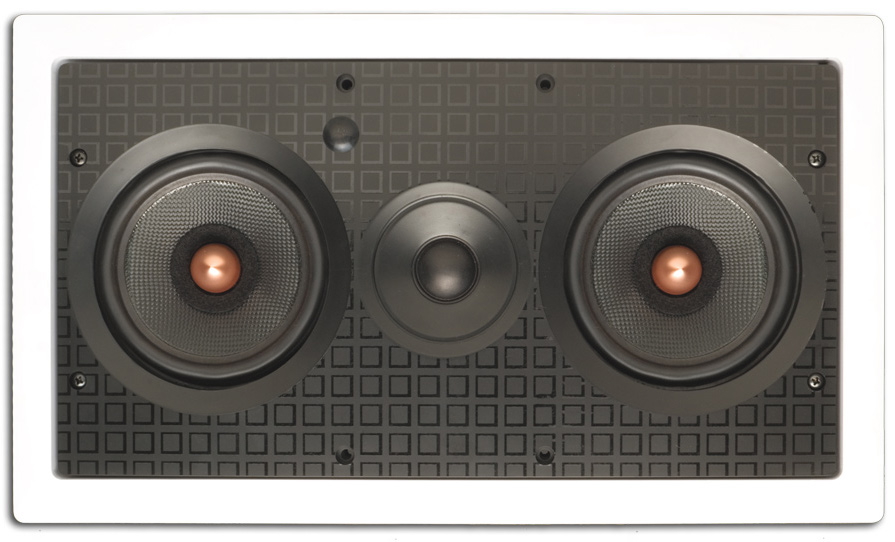

May be oriented vertically or horizontally.
| SPECIFICATIONS |
Frequency Response:
|
45 Hz - 20kHz |
Power Handling: |
50 watts nom. 100 max |
Sensitivity: |
91 dB 1 watt / 1 meter |
Impedance: |
8 ohms nominal |
Tweeter: |
Silk Soft Dome Pivoting Tweeter |
Grille: |

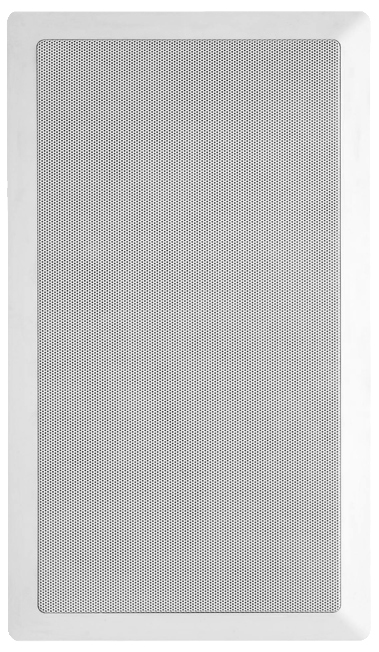

Perforated Metal Grille |
Pre-Construction Bracket |
|
Overall Dimensions: |
9" x 15-3/4" |
Cut-Out Dimensions: |
7-7/8" x 14-7/16" x 3-1/2" deep |
| |
|
FEATURES |
 |
Kevlar® long throw woofer cones with butyl rubber surrounds |
|
Kapton voice coil formers |
|
High-grade crossovers |
|
Phase plug pole piece extensions |
|
IR Knockouts |
|
Orient Vertically or Horizontally |
|
Magnetically Shielded |
|
Polyswitch overdrive protection |
|
Clamp Ring Mounting System |
| |
 Compliant |
Lifetime Limited Warranty |
|
|
