PV-6LCRS VALUELINE
6-1/2" 2-way round 15º Angled
In-Ceiling Loudspeaker

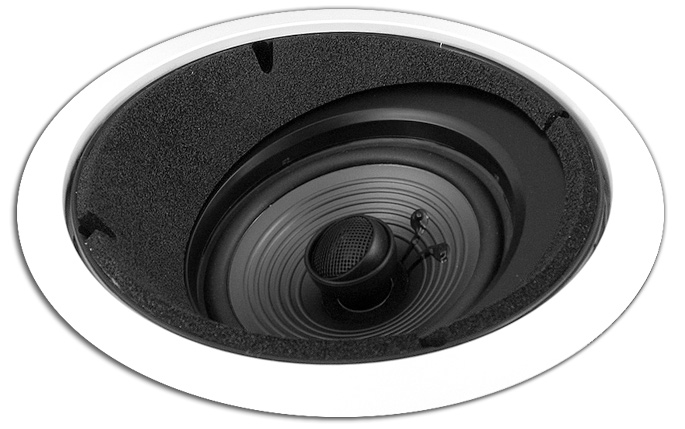

The 15 degree angle enables significantly enhanced cinematic
sound imaging when room layouts dictate ceiling mounted loudspeakers.
| SPECIFICATIONS |
Frequency Response:
|
45 Hz - 20kHz |
Power Handling: |
50 watts nom. 100 max |
Sensitivity: |
91 dB 1 watt / 1 meter |
Impedance: |
8 ohms nominal |
Tweeter: |
3/4" Pivoting Dome Tweeter |
Grille: |
Perforated Metal Grille |
Pre-Construction Bracket |
|
Overall Dimensions: |
10-3/4" round |
Cut-Out Dimensions: |
9-1/4" round x 5-3/4" deep |
| |
|
FEATURES |
 |
Poly woofer with butyl rubber surrounds |
|
Kapton voice coil formers |
|
High-grade crossovers |
|
Polyswitch overdrive protection |
|
Proven Mounting System |
|
Sold and Shipped Individually |
| |
 Compliant |
Lifetime Limited Warranty |
|
|
